To
test another
identical sample for a different customer goto Step
2
To test another new independent shape goto Step
1
Just that simple folks! The next section discusses the results of the
tests. |
|

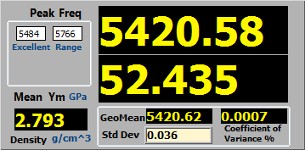

After
two successful taps (Trial), the results of the test are displayed in
the
Output Window (Top right of the GUI) |
|
|
- Peak
Frequency (Hz) and the
"Excellent" range
- Mean YM
(GPa) between the two taps
- Mean
Frequency(Hz) between the two Taps
- Standard
Deviation
- Coefficient
of variance (%) between the two Taps
- Density
(gms/cc)
|
|
|
|
- To change
the display units of Density and
YM click on the UNITS selection window (Bottom Right corner)
of
the GUI.
|
|
